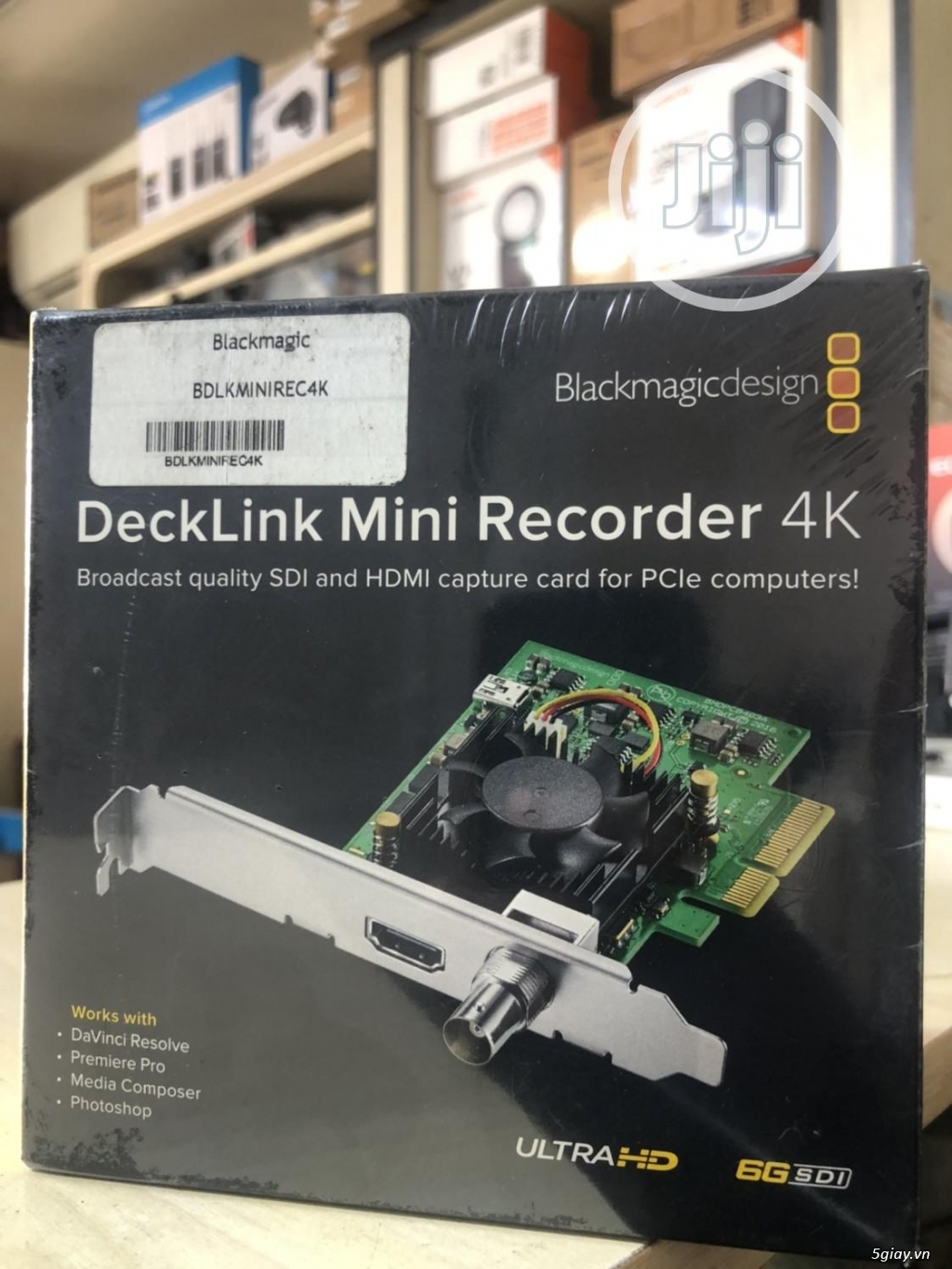

Card Kỹ Xảo Blackmagic Design DeckLink Mini Recorder 4K

Blackmagic Design DeckLink Mini Recorder 4K

Record video ở tất cả các định dạng lên đến 2160p30 vào máy tính! Trang bị các kết nối 6G-SDI và HDMI 2.0 mới nhất.

TÍNH NĂNG NỔI BẬT

● SD/HD/3G/6G-SDI Input
● HDMI Input
● PCI-Express 2.0 x4 Interface
● Hỗ trợ video DCI 4K, UHD, HD, và SD
● Xử lý 10-bit
● Chuyển đổi không gian màu phần cứng
● Chuyển đổi xuống HD bằng phần mềm
● Tương thích hệ điều hành MacOS X, Windows, và Linux

Connections
SDI Video Input
1 x 10-bit SD/HD/Ultra HD switchable

SDI Audio Input
16 channels embedded in SD, HD, Ultra HD.

HDMI Video Input
1 x HDMI 2.0a connector.

HDMI Audio Input
8 Channels embedded in SD, HD, Ultra HD.

Computer Interface
PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCI Express slots.

Codecs
Supports: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2.

Software
Software Included
Media Express, Disk Speed Test, LiveKey, Blackmagic System Preferences and Blackmagic driver on Mac OS X and Windows.

Internal Software Upgrade
Firmware built into software driver. Loaded at system start or via updater software.

Physical Installation
PCI Express 4 lane, compatible with 4, 8 and 16 lane PCI Express slots on Mac OS X, Windows and Linux. Mac OS X systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements.

Software Applications
DaVinci Resolve
Fusion
Premiere Pro CC
Avid Media Composer
After Effects CC
Avid Pro Tools
Steinberg Cubase
Steinberg Nuendo
Photoshop CC
Media Express
Other supported applications include: Nuke, Avid Symphony, Avid News Cutter, Tools On Air just:in & live:cut & justlay & just:live, Softron OnTheAir, MovieRecorder and OnTheAir CG, Flash Media Live Encoder, Wirecast, Livestream Procaster, Resolume Avenue 4, Sony Vegas Pro, Corel VideoStudio Pro X4, CyberLink Power Director, MAGIX Video Pro X4, Vidblaster Pro & Studio & Broadcast, Uniplay, Playbox AirBox, CasparCG, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity & InfoCaster.

Video Standards
SD Format Support
525i59.94 NTSC, 625i50 PAL

HD Format Support
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60

Ultra HD Format Support
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30

4K DCI Format Support
4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p*

SDI Compliance
SMPTE 259M/292/425/2081

SDI Metadata Support
RP 188/SMPTE 12M-2 and closed captioning

Audio Sampling
Television standard sample rate of 48 kHz and 24 bit.

SDI Video Sampling
4:4:4 & 4:2:2

SDI Color Precision
8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p60, and 8, 10-bit YUV 4:2:2 in all modes
